PLASTIC
METAL
HYGIENICVP10

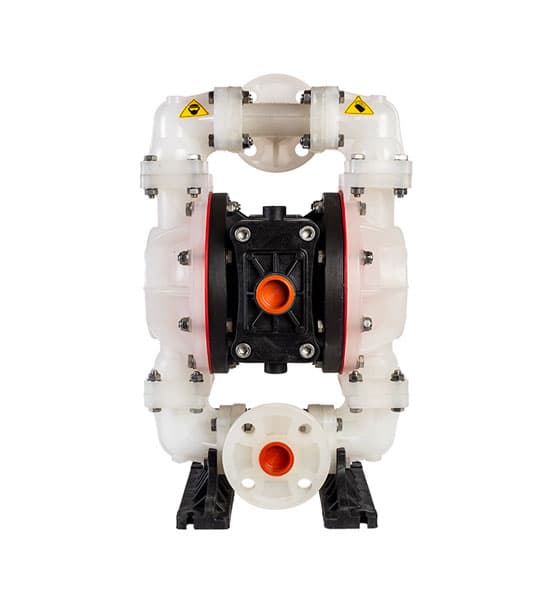

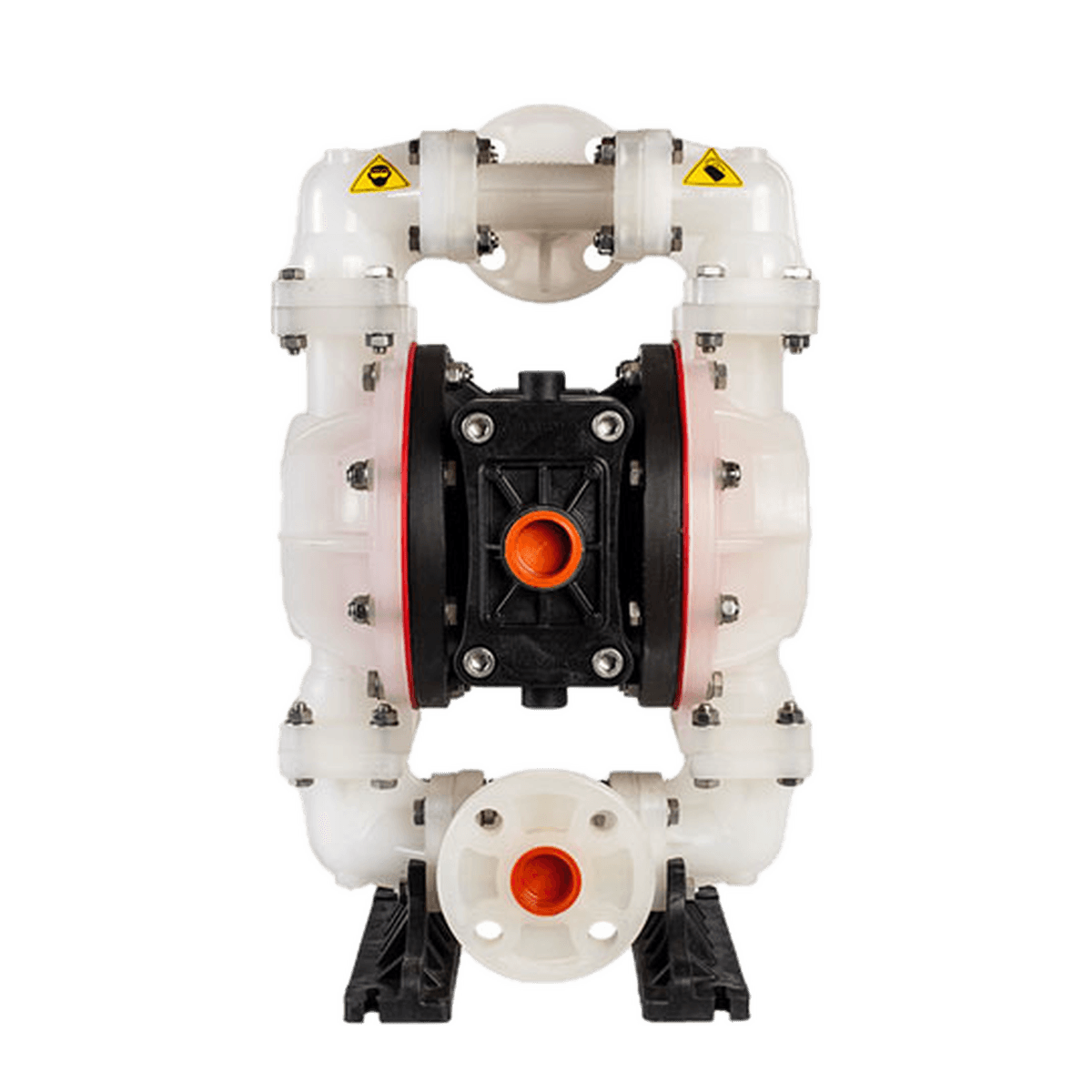

Industrial AODD pump platform with documented plastic, metal, and hygienic configuration paths.
- MAX FLOW
- 39.6GPM 150 L/min
- MAX PRESSURE
- 102PSI 7 bar
- MAX SOLIDS
- 0.16IN 4 mm
- PORT
- 1" Suction / discharge
Values cross-checked against supplied structured data and English catalog.
Build the right
engineering question.
Explore only documented options. Final combinations and compatibility are confirmed by Vesta engineering.
Representative supplied imageExplore documented options.
Selections prepare your engineering inquiry. They do not confirm that every combination exists or is compatible with your fluid.
Compatibility is not assumed. Confirm fluid, temperature and installation conditions with Vesta engineering.
Where VP10
can enter the conversation.
Application tags reflect supplied catalog evidence, not automatic compatibility approval.
Chemical transfer
Confirm fluid, temperature, viscosity and selected materials.
Wastewater
Confirm fluid, temperature, viscosity and selected materials.
Paint & coatings
Confirm fluid, temperature, viscosity and selected materials.
Food processing
Confirm fluid, temperature, viscosity and selected materials.
Automotive
Confirm fluid, temperature, viscosity and selected materials.

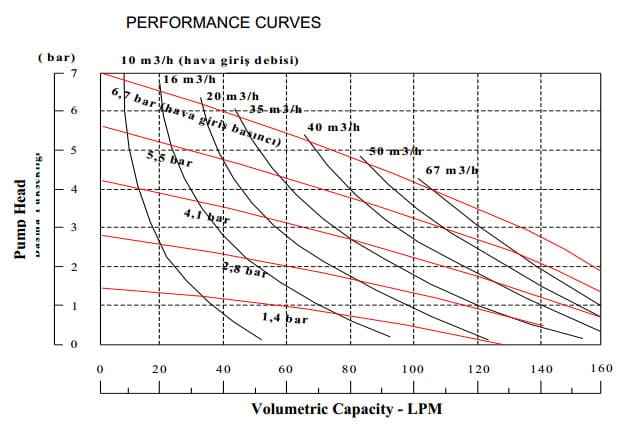

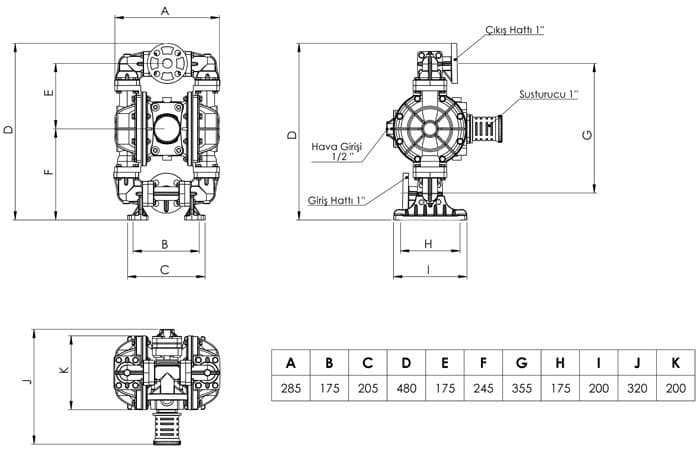

Performance curve
and dimensions.
The original supplied graphics are shown without interpolation or regenerated curves.
Source documents.
Share the operating conditions.
We’ll use your application details to confirm the model, materials, and configuration before quoting.
